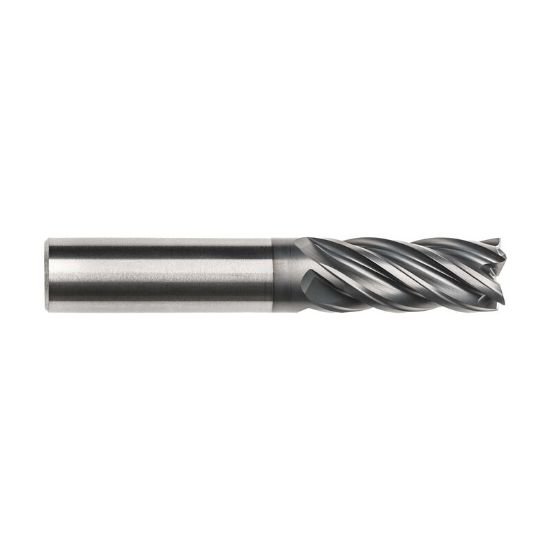

Picture of Imco 61503 Dia 1/4 SH 0.2500 LOC 0.50 OAL2.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Imco 61503 Dia 1/4 SH 0.2500 LOC 0.50 OAL2.00 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0600 1.52mm Pow-R-Path Mill

Part Number: IMC61503 0.250 x 0.250 x 0.500 x 2.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1231668
Vendor: Sussex Tool and Supply
$65.53
IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0600 1.52MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Graphite, Aluminum, Plastic
Coating TAC
Mach Side Connection Size 0.2500 6.35MM
Overall Length 2.0000 50.80MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 5
Tool Dia 0.2500 6.35MM - 1/4 - E
Length Type STANDARD
Performance Rating High Performance
Length Of Cut 0.5000 12.70MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0600 1.52MM
Inch/Metric Inch
Helix Angle 35
Center Cutting Center Cutting
