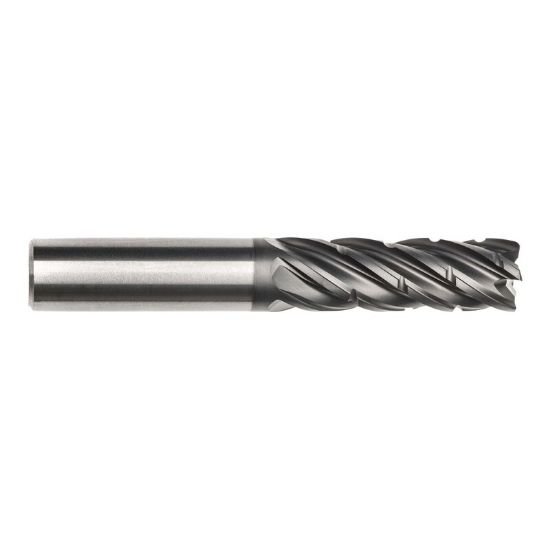

Picture of Imco 61471 Dia 20mm SH 0.7874 LOC 1.5748 OAL4.0945 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0394 1.00mm Pow-R-Path Mill

Imco 61471 Dia 20mm SH 0.7874 LOC 1.5748 OAL4.0945 End Mill Standard Flute Standard Helix Carbide TAC Single End Corner Radius0.0394 1.00mm Pow-R-Path Mill

Part Number: IMC61471 0.787 x 0.787 x 1.575 x 4.095
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231656
Vendor: Sussex Tool and Supply
$390.75

Description

IMCO Standard Helix End Mill Carbide TAC Corner Radius 0.0394 1.00MM Standard Flute Flutes 5 Single End Pow-R-Path Mill Carbide The taC coating that protects the cutting edges to ensure long tool life — even in high-silicon aluminums.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type LONG
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0945 104.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 5
Tool Dia 0.7874 20.00MM
Length Of Cut 1.5748 40.00MM
Geometry & Angles
Corner Radius 0.0394 1.00MM
Helix Angle 35
Performance & Capacity
Cut Rating Graphite, Aluminum, Plastic
Performance Rating High Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TAC
