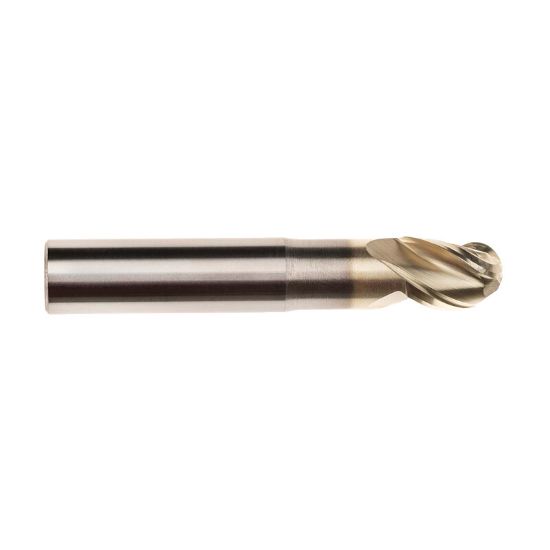

IMCO 61401 DIA 20MM SH 0.7874 LOC 1.1811 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61401
Delivery date: 3-5 days
$277.37

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Ball Slot Milling, Profile Milling, Copy Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Length Type Standard / With Neck
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Overall Len 4.9213 125.00MM
Neck Length 2.4409 62.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutter Style Carbide Ball Finisher
Inch/Metric Metric
Single/Double End Single End
Tool Material Carbide
Machine Side Connection Type Cylindrical
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Dimension Description 0.787 x 0.787 x 1.181 x 4.921 LBS = 2.441
Machine Side Connection Size 0.7874 20.00MM
Cutter Dia 0.7874 20.00MM
Length Of Cut 1.1811 30.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
