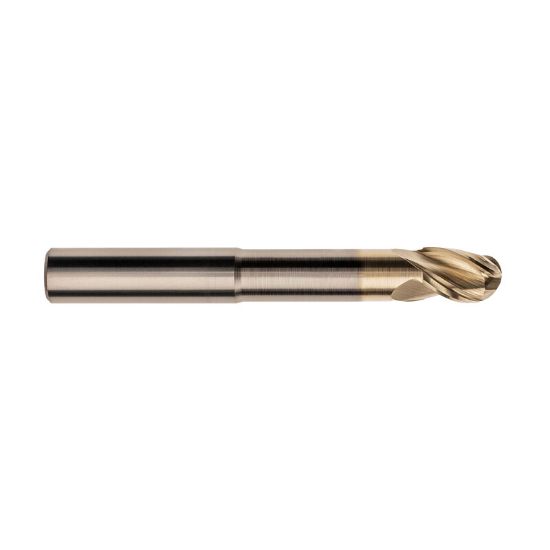

IMCO 61396 DIA 16MM SH 0.6299 LOC 0.9449 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61396
Delivery date: 3-5 days
$190.28

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 0.9449 24.00MM
Dimension Description 0.630 x 0.630 x 0.945 x 4.921 LBS = 2.598
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Overall Len 4.9213 125.00MM
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Helix Angle 45°
Inch/Metric Metric
Length Type Standard / With Neck
Neck Length 2.5984 66.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
