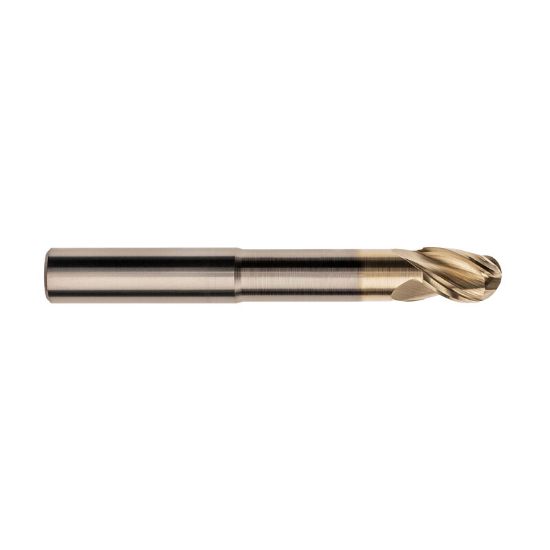

IMCO 61383 DIA 12MM SH 0.4724 LOC 0.7087 OAL 3.9370 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61383
Delivery date: 3-5 days
$111.22

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Helix Angle 45°
Machine Side Connection Size 0.4724 12.00MM
Inch/Metric Metric
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cut Rating Aluminum, Graphite, Plastic
Neck Length 1.9685 50.00MM
Tool Material Carbide
Length Of Cut 0.7087 18.00MM
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Dimension Description 0.472 x 0.472 x 0.709 x 3.937 LBS = 1.969
Overall Len 3.9370 100.00MM
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
