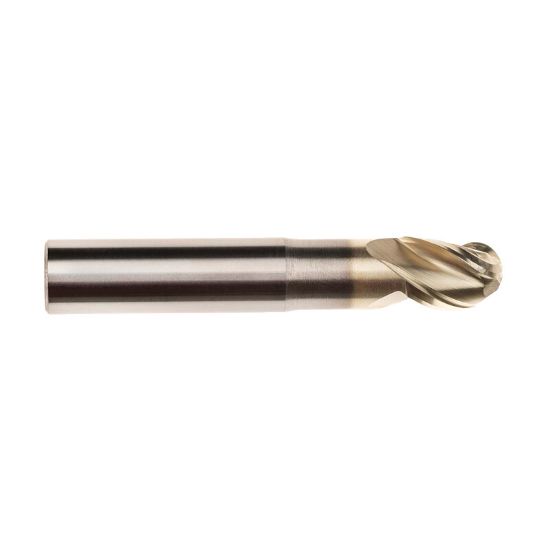

IMCO 61375 DIA 12MM SH 0.4724 LOC 0.7087 OAL 3.4646 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61375
Delivery date: 3-5 days
$107.46

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Milling, Side Milling, Ball Slot Milling, Profile Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Length Of Cut 0.7087 18.00MM
Dimension Description 0.472 x 0.472 x 0.709 x 3.465 LBS = 1.496
Helix Angle 45°
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Length Type Standard / With Neck
Neck Length 1.4961 38.00MM
Machine Side Connection Size 0.4724 12.00MM
Overall Len 3.4646 88.00MM
Inch/Metric Metric
Cutter Dia 0.4724 12.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
