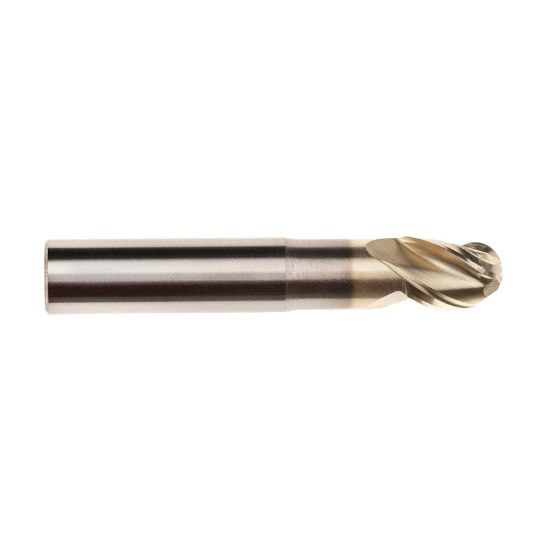

IMCO 61346 DIA 6MM SH 0.2362 LOC 0.3543 OAL 2.4803 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61346
Delivery date: 3-5 days
$43.60

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Ball Slot Milling, Profile Milling, Ball Milling, Side Milling
Package Size 1
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.2362 6.00MM
Overall Len 2.4803 63.00MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Inch/Metric Metric
Single/Double End Single End
Cutter Dia 0.2362 6.00MM
Neck Length 1.0236 26.00MM
Cutter Style Carbide Ball Finisher
Machine Side Connection Size 0.2362 6.00MM
Length Of Cut 0.3543 9.00MM
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Dimension Description 0.236 x 0.236 x 0.354 x 2.480 LBS = 1.024
Length Type Standard / With Neck
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
