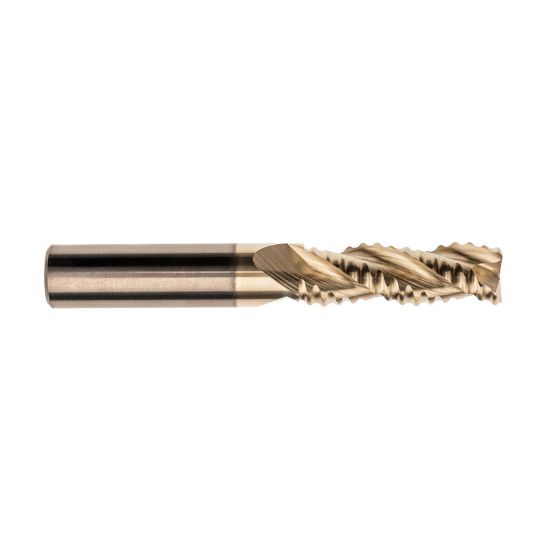

IMCO 61339 DIA 16MM SH 0.6299 LOC 1.8898 OAL 4.3307 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0394 1.00MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61339
Delivery date: 3-5 days
$211.92

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Side Milling, Profile Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0394 1.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Dia 0.6299 16.00MM
Helix Angle 45°
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
End Of Tool Shape Corner Radius
Dimension Description 0.630 x 0.630 x 1.890 x 4.331
Single/Double End Single End
Overall Len 4.3307 110.00MM
Length Of Cut 1.8898 48.00MM
Length Type Standard
Inch/Metric Metric
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Medical Yes
Job Shop Yes
