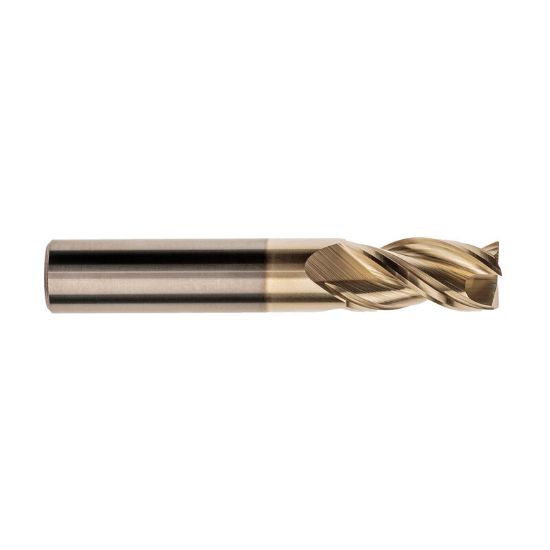

IMCO 61281 DIA 12MM SH 0.4724 LOC 1.4173 OAL 3.4646 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61281
Delivery date: 3-5 days
$82.62

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Slot Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.472 x 0.472 x 1.417 x 3.465
Overall Len 3.4646 88.00MM
Inch/Metric Metric
Single/Double End Single End
Helix Angle 45°
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.4724 12.00MM
Cutter Style Carbide Finisher
Flutes/Inserts 3
Length Of Cut 1.4173 36.00MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.4724 12.00MM
End Of Tool Shape Square
Machine Side Connection Size 0.4724 12.00MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
