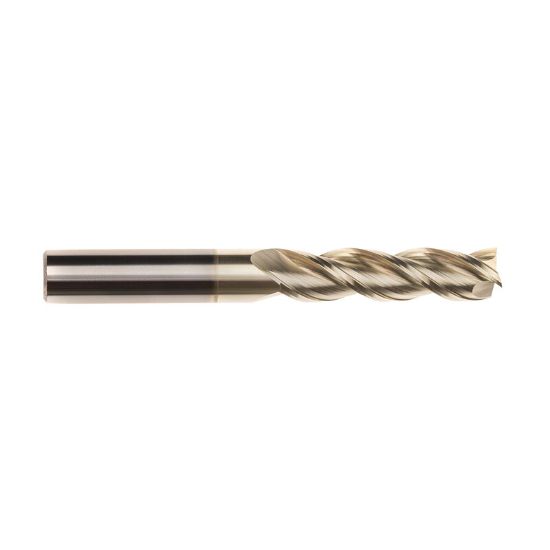

IMCO 61264 DIA 10MM SH 0.3937 LOC 1.5748 OAL 3.4646 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0591 1.50MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61264
Delivery date: 3-5 days
$63.98

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Profile Milling, Slot Milling, Face Milling, Copy Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Dimension Description 0.394 x 0.394 x 1.575 x 3.465
Length Of Cut 1.5748 40.00MM
End Of Tool Shape Corner Radius
Overall Len 3.4646 88.00MM
Inch/Metric Metric
Single/Double End Single End
Length Type Standard
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0591 1.50MM
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
