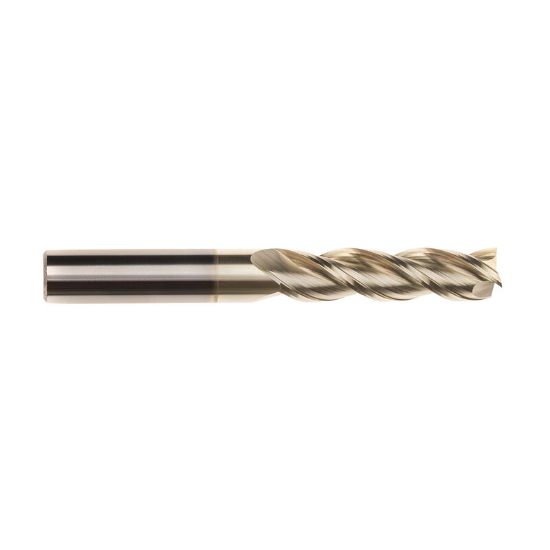

IMCO 61262 DIA 10MM SH 0.3937 LOC 1.5748 OAL 3.4646 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61262
Delivery date: 3-5 days
$63.98

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Corner Radius 0.0197 0.50MM
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 3.4646 88.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Inch/Metric Metric
Shank/Pilot Dia 0.3937 10.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.394 x 0.394 x 1.575 x 3.465
Length Of Cut 1.5748 40.00MM
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
