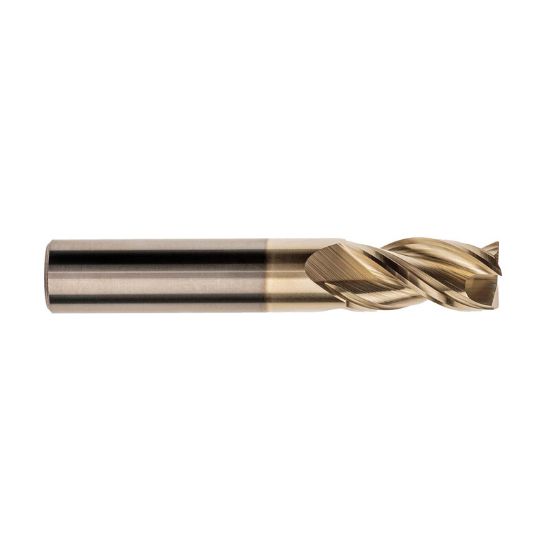

IMCO 61258 DIA 10MM SH 0.3937 LOC 1.1811 OAL 2.9528 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61258
Delivery date: 3-5 days
$55.69

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Side Milling, Slot Milling, Copy Milling, Face Milling, Profile Milling
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.394 x 0.394 x 1.181 x 2.953
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 1.1811 30.00MM
Inch/Metric Metric
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Overall Len 2.9528 75.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0197 0.50MM
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
