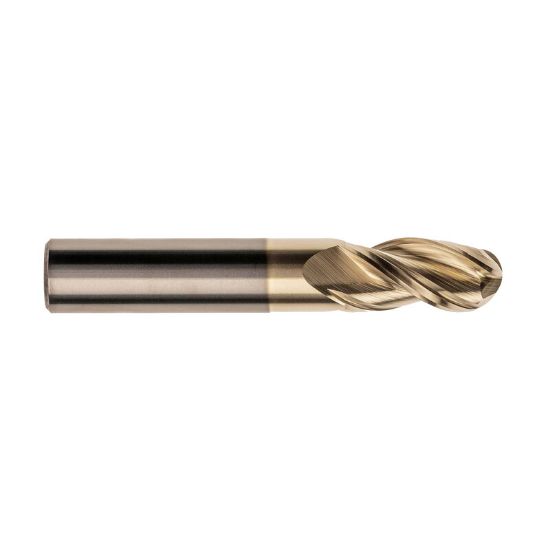

IMCO 61256 DIA 10MM SH 0.3937 LOC 0.9843 OAL 2.8346 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61256
Delivery date: 3-5 days
$59.17

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Ball Milling, Copy Milling, Ball Slot Milling, Profile Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Inch/Metric Metric
Single/Double End Single End
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.9843 25.00MM
Dimension Description 0.394 x 0.394 x 0.984 x 2.835
Length Type Standard
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Cutter Dia 0.3937 10.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cut Rating Aluminum, Graphite, Plastic
Overall Len 2.8346 72.00MM
Cutter Style Carbide Ball Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
Medical Yes
