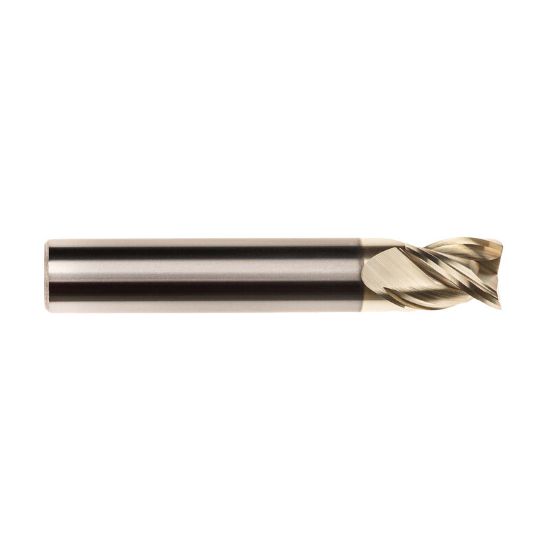

IMCO 61250 DIA 10MM SH 0.3937 LOC 0.8661 OAL 2.8346 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0118 0.30MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61250
Delivery date: 3-5 days
$53.52

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Face Milling, Profile Milling, Side Milling, Slot Milling, Copy Milling
Package Size 1
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Corner Radius 0.0118 0.30MM
Cutter Dia 0.3937 10.00MM
Shank/Pilot Dia 0.3937 10.00MM
Length Of Cut 0.8660 22.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.394 x 0.394 x 0.866 x 2.835
Machine Side Connection Size 0.3937 10.00MM
Helix Angle 45°
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Inch/Metric Metric
Overall Len 2.8346 72.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
