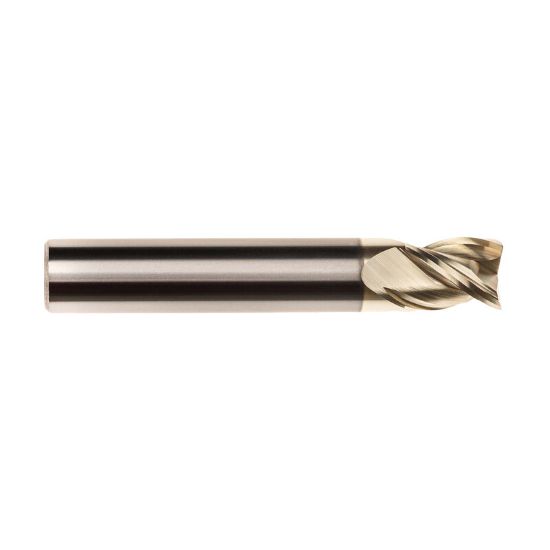

IMCO 61246 DIA 8MM SH 0.3150 LOC 1.2598 OAL 2.9528 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0394 1.00MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61246
Delivery date: 3-5 days
$47.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Length Of Cut 1.2600 32.00MM
Inch/Metric Metric
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Corner Radius 0.0394 1.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Dimension Description 0.315 x 0.315 x 1.260 x 2.953
Length Type Standard
Overall Len 2.9528 75.00MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Helix Angle 45°
Shank/Pilot Dia 0.3150 8.00MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
