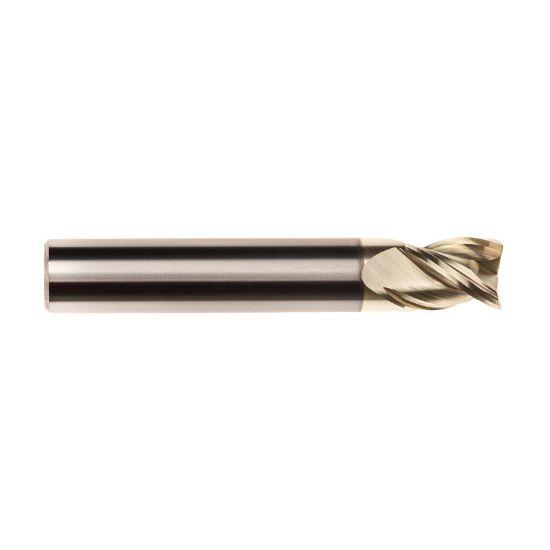

IMCO 61245 DIA 8MM SH 0.3150 LOC 1.2598 OAL 2.9528 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0197 0.50MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61245
Delivery date: 3-5 days
$47.75

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Face Milling, Profile Milling, Slot Milling, Side Milling, Copy Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Cutter Dia 0.3150 8.00MM
Length Of Cut 1.2600 32.00MM
Inch/Metric Metric
Corner Radius 0.0197 0.50MM
Helix Angle 45°
Overall Len 2.9528 75.00MM
Single/Double End Single End
End Of Tool Shape Corner Radius
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.3150 8.00MM
Dimension Description 0.315 x 0.315 x 1.260 x 2.953
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
