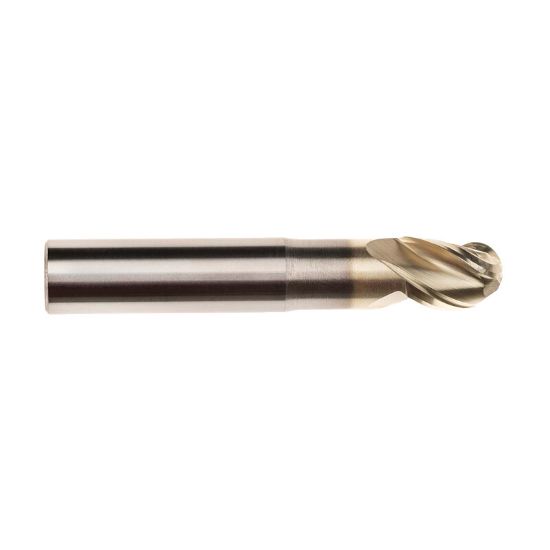

IMCO 61200 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61200
Delivery date: 3-5 days
$228.94

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Application Side Milling, Ball Slot Milling, Profile Milling, Ball Milling, Copy Milling
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Dimensional Specifications
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Flutes/Inserts 3
End Of Tool Shape Ball Nose
Dimension Description 0.750 x 0.750 x 1.000 x 4.000 LBS = 1.750
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Cutter Dia 0.7500 19.05MM - 3/4
Neck Length 1.7500 44.45MM
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 45°
Length Type Standard / With Neck
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
