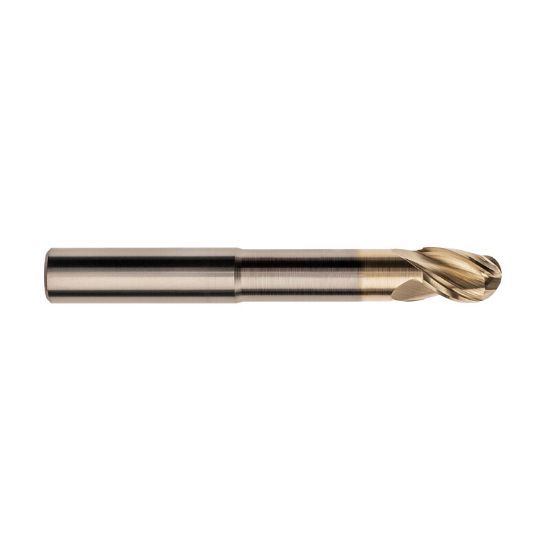

IMCO 61127 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61127
Delivery date: 3-5 days
$50.65

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Side Milling, Copy Milling, Ball Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Dimension Description 0.125 x 0.125 x 0.250 x 3.000 LBS = 1.000
Cutter Style Carbide Ball Finisher
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Neck Length 1.0000 25.40MM
End Of Tool Shape Ball Nose
Helix Angle 45°
Cutter Dia 0.1250 3.18MM - 1/8
Overall Len 3.0000 76.20MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
