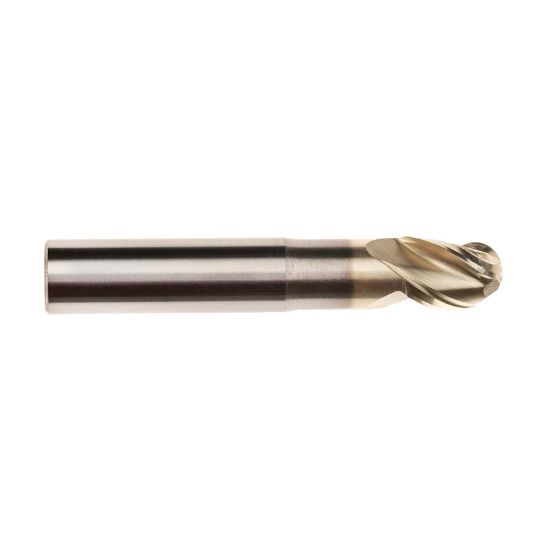

IMCO 61124 DIA 1/8 SH 0.1250 LOC 0.2500 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61124
Delivery date: 3-5 days
$49.19

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Profile Milling, Side Milling, Ball Milling, Copy Milling, Ball Slot Milling
Made In USA Yes
Package Size 1
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Overall Len 2.5000 63.50MM
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Cutter Dia 0.1250 3.18MM - 1/8
Neck Length 0.7500 19.05MM
Dimension Description 0.125 x 0.125 x 0.250 x 2.500 LBS = 0.750
Machine Side Connection Size 0.1250 3.18MM
Shank/Pilot Dia 0.1250 3.18MM - 1/8
Length Type Standard / With Neck
End Of Tool Shape Ball Nose
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Flutes/Inserts 3
Length Of Cut 0.2500 6.35MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
