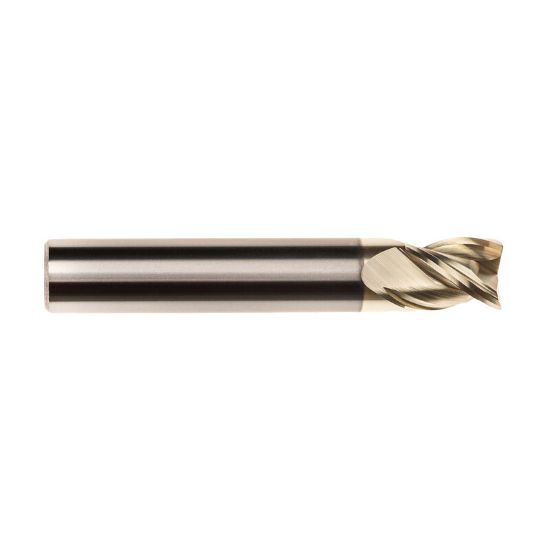

IMCO 61070 DIA 5/8 SH 0.6250 LOC 1.8750 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61070
Delivery date: 3-5 days
$154.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Copy Milling, Side Milling, Profile Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Cut Rating Aluminum, Graphite, Plastic
Helix Angle 45°
Dimension Description 0.625 x 0.625 x 1.875 x 4.000
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.6250 15.88MM - 5/8
Overall Len 4.0000 101.60MM
End Of Tool Shape Corner Radius
Length Of Cut 1.8750 47.63MM
Length Type Standard
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.6250 15.88MM
Single/Double End Single End
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Center Cutting Yes
Coolant Thru No
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
