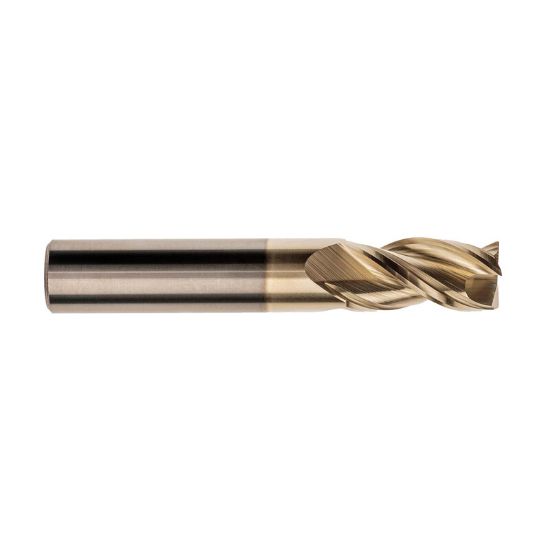

IMCO 61054 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1250 3.18MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61054
Delivery date: 3-5 days
$71.82

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Copy Milling, Profile Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Overall Len 3.0000 76.20MM
Length Type Standard
Dimension Description 0.500 x 0.500 x 1.250 x 3.000
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Corner Radius 0.1250 3.18MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
Aerospace Yes
Medical Yes
