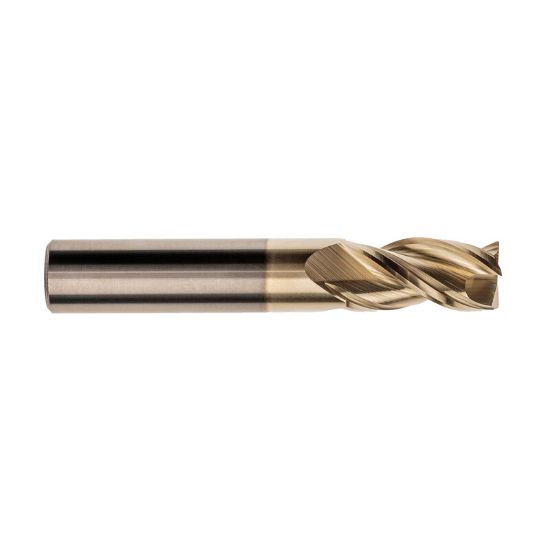

IMCO 61035 DIA 3/8 SH 0.3750 LOC 1.50 OAL 3.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61035
Delivery date: 3-5 days
$61.49

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Helix Angle 45°
Dimension Description 0.375 x 0.375 x 1.500 x 3.500
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Inch/Metric Inch
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Length Of Cut 1.5000 38.10MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Overall Len 3.5000 88.90MM
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
