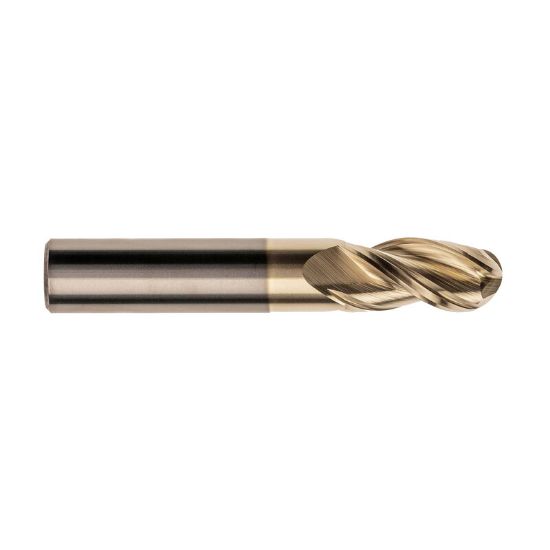

IMCO 61008 DIA 3/16 SH 0.1875 LOC 0.5625 OAL 2.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Ball Nose Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC61008
Delivery date: 3-5 days
$32.20

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Ball Slot Milling, Profile Milling, Copy Milling, Ball Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Cutter Style Carbide Ball Finisher
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Length Type Standard
Cutter Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 3
Length Of Cut 0.5625 14.29MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Machine Side Connection Size 0.1875 4.76MM
Overall Len 2.0000 50.80MM
Single/Double End Single End
Dimension Description 0.188 x 0.188 x 0.563 x 2.000
End Of Tool Shape Ball Nose
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
