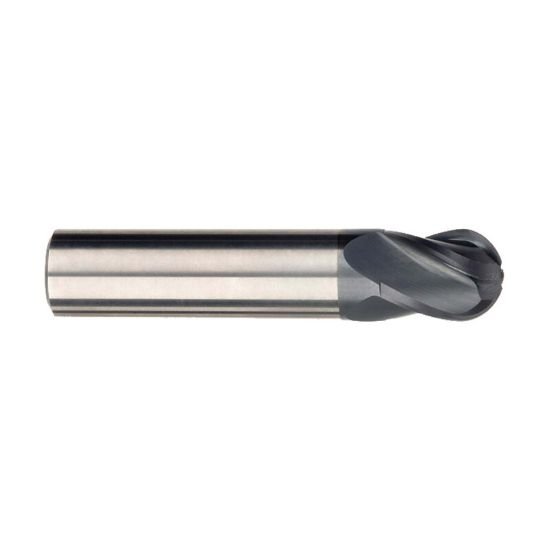

Picture of Imco 39850 Dia 8mm SH 0.3150 LOC 0.7874 OAL2.4803 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Imco 39850 Dia 8mm SH 0.3150 LOC 0.7874 OAL2.4803 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Ball NoseBall General PURPOSE

Part Number: IMC39850 0.315 x 0.315 x 0.787 x 2.480

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1231189
Vendor: Sussex Tool and Supply
$53.92
IMCO Standard Helix End Mill Carbide AlTiN Ball Nose Ball Standard Flute Flutes 4 Single End GENERAL PURPOSE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3150 8.00MM
Overall Length 2.4803 63.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3150 8.00MM
Flutes/Inserts 4
Tool Dia 0.3150 8.00MM
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.7874 20.00MM
End Of Tool Shape Ball Nose
Cutter Style Carbide Ball Finisher
Single/Double End Single End
Inch/Metric Metric
Helix Angle 30
Center Cutting Center Cutting
