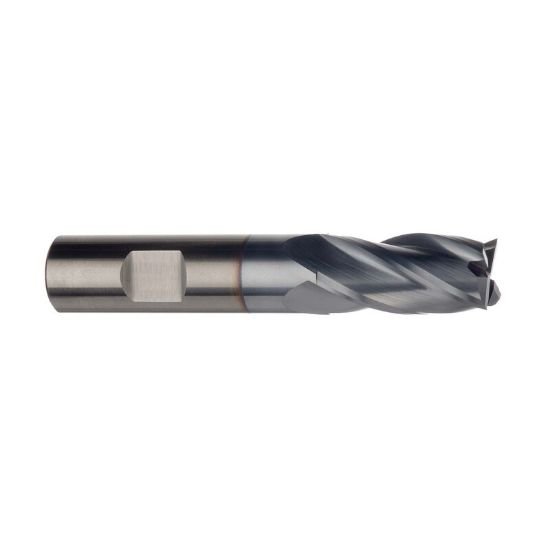

Picture of Imco 39785 Dia 3/4 SH 0.7500 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp General PURPOSE

Imco 39785 Dia 3/4 SH 0.7500 LOC 1.50 OAL4.00 End Mill Standard Flute Standard Helix Carbide TiCN Single End Square Sharp General PURPOSE

Part Number: IMC39785 0.750 x 0.750 x 1.500 x 4.000
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231167
Vendor: Sussex Tool and Supply
$176.65

Description

IMCO Standard Helix End Mill Carbide TiCN Square Sharp Standard Flute Flutes 4 Single End GENERAL PURPOSE Carbide Titanium Carbo-Nitride (TiCN) has the highest lubricitiy of all the TiN coatings - making it an excellent choice as a dry film lubricant where improved hardness and wear resistance beyond standard Calico TiN is needed. TiCN is normally applied to steels, hardened steel, and stainless steel materials. TiCN is an excellent coating when working against bronze, brass and plastic, therefore, it a good choice for stamping, punching, and forming. Can be stripped and recoated.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0000 101.60MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 4
Tool Dia 0.7500 19.05MM - 3/4
Length Of Cut 1.5000 38.10MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating TICN
