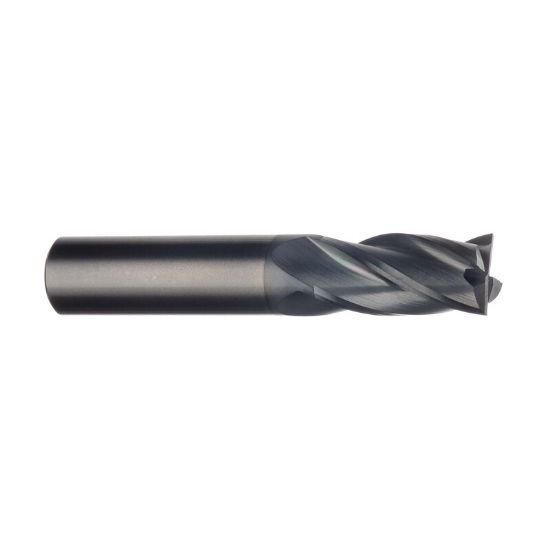

Picture of Imco 39700 Dia 5/16 Sh 0.3125 Loc 0.8125 Oal2.50 End Mill Standard Flute Standard Helix Carbide Altin Single End Corner Radius0.0300 0.76mm General Purpose

Imco 39700 Dia 5/16 Sh 0.3125 Loc 0.8125 Oal2.50 End Mill Standard Flute Standard Helix Carbide Altin Single End Corner Radius0.0300 0.76mm General Purpose

Part Number: IMC39700 0.313 x 0.313 x 0.813 x 2.500

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1030911
Vendor: Sussex Tool and Supply
$49.29
IMCO Standard Helix End Mill Carbide AlTiN Corner Radius 0.0300 0.76MM Standard Flute Flutes 3 Single End GENERAL PURPOSE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Cylindrical
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.3125 7.94MM
Overall Length 2.5000 63.50MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.3125 7.93MM - 5/16
Flutes/Inserts 3
Tool Dia 0.3125 7.94MM - 5/16
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 0.8125 20.64MM
End Of Tool Shape CORNER RADIUS
Cutter Style Carbide Bull Nose Finisher
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
