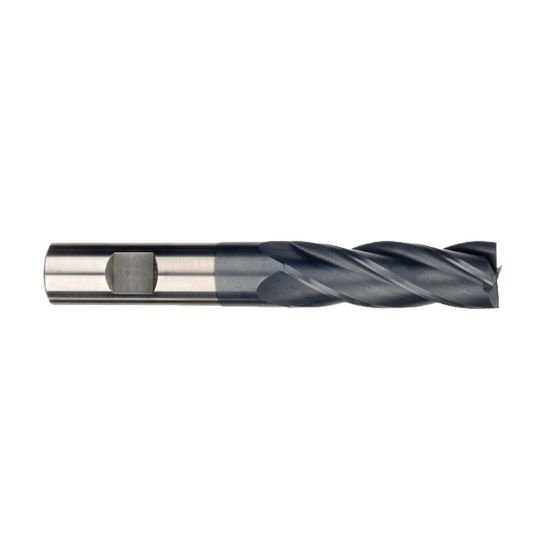

Picture of Imco 39170 Dia 5/8 Sh 0.6250 Loc 2.2500 Oal5.00 End Mill Standard Flute Standard Helix Carbide Altin Single End Square Sharp General Purpose

Imco 39170 Dia 5/8 Sh 0.6250 Loc 2.2500 Oal5.00 End Mill Standard Flute Standard Helix Carbide Altin Single End Square Sharp General Purpose

Part Number: IMC39170 0.625 x 0.625 x 2.250 x 5.000

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: 1030845
Vendor: Sussex Tool and Supply
$230.70
IMCO Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 4 Single End GENERAL PURPOSE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Tool Material Carbide
Cutting Edge Mat Carbide
Machine Side Connection Type Weldon
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Coating ALTIN
Mach Side Connection Size 0.6250 15.88MM
Overall Length 5.0000 127.00MM
Coolant Thru Non Coolant
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Flutes/Inserts 4
Tool Dia 0.6250 15.88MM - 5/8
Length Type STANDARD
Performance Rating General Performance
Length Of Cut 2.2500 57.15MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Inch
Helix Angle 30
Center Cutting Center Cutting
