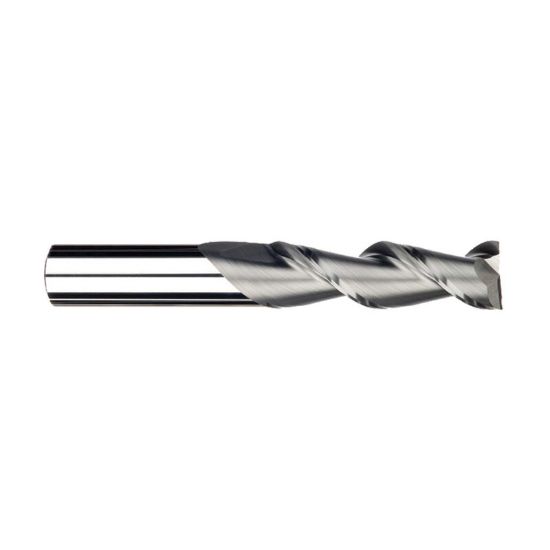

IMCO 38081 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1250 3.18MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC38081
Delivery date: 3-5 days
$98.81

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Copy Milling, Face Milling, Profile Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
End Of Tool Shape Corner Radius
Flutes/Inserts 2
Length Type Standard
Corner Radius 0.1250 3.18MM
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Dimension Description 0.500 x 0.500 x 2.000 x 4.000
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Helix Angle 45°
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
