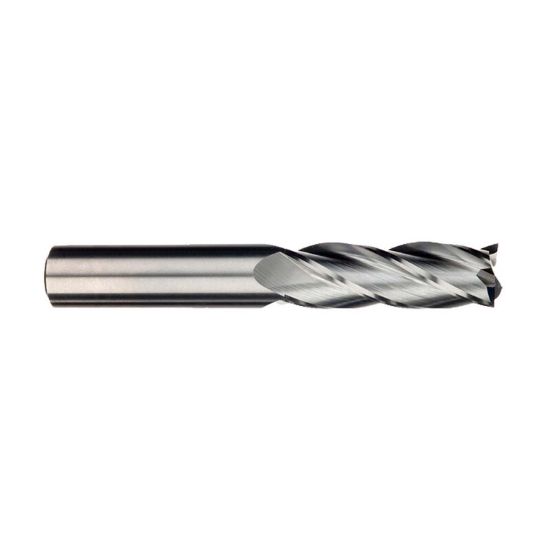

IMCO 37724 DIA 3/8 SH 0.3750 LOC 1.1250 OAL 3.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC37724
Delivery date: 3-5 days
$34.47

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating General Performance
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Cutter Dia 0.3750 9.53MM - 3/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Finisher
Inch/Metric Inch
Dimension Description 0.375 x 0.375 x 1.125 x 3.000
Machine Side Connection Size 0.3750 9.53MM
Length Of Cut 1.1250 28.58MM
Length Type Standard
Flutes/Inserts 4
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Overall Len 3.0000 76.20MM
Helix Angle 30°
End Of Tool Shape Square
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
