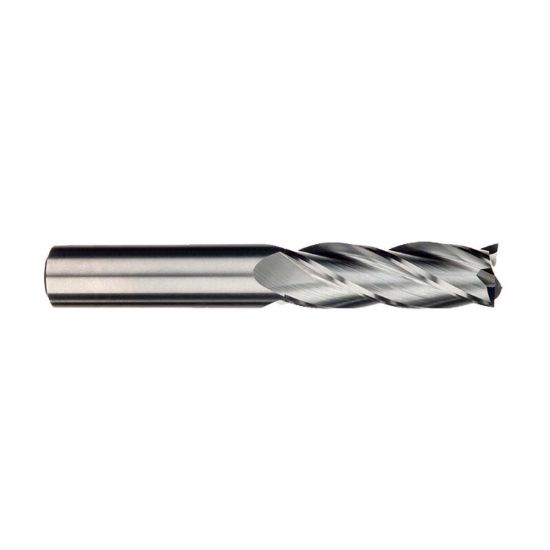

IMCO 37712 DIA 3/16 SH 0.1875 LOC 0.7500 OAL 2.50 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC37712
Delivery date: 3-5 days
$17.99

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Package Size 1
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
End Of Tool Shape Square
Helix Angle 30°
Machine Side Connection Size 0.1875 4.76MM
Dimension Description 0.188 x 0.188 x 0.750 x 2.500
Length Type Standard
Shank/Pilot Dia 0.1875 4.76MM - 3/16
Flutes/Inserts 4
Length Of Cut 0.7500 19.05MM
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Overall Len 2.5000 63.50MM
Single/Double End Single End
Cutter Dia 0.1875 4.76MM - 3/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Inch/Metric Inch
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
