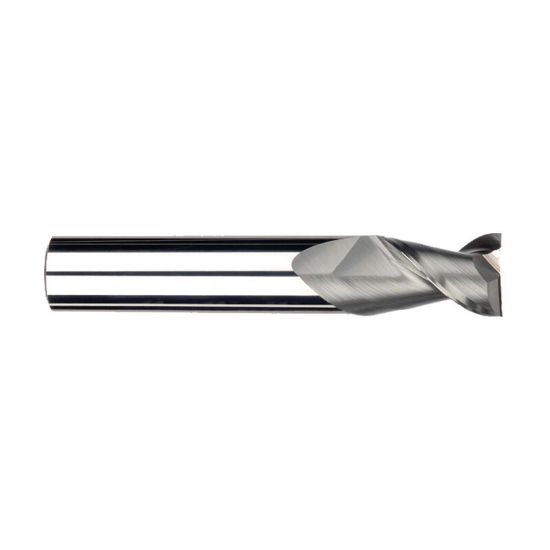

IMCO 36974 DIA 4MM SH 0.1575 LOC 0.4331 OAL 1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC36974
Delivery date: 3-5 days
$20.27

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Slot Milling, Face Milling
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Length Of Cut 0.4331 11.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Dimension Description 0.157 x 0.157 x 0.433 x 1.969
Shank/Pilot Dia 0.1574 4.00MM
Single/Double End Single End
Flutes/Inserts 2
Inch/Metric Metric
Length Type Standard
Cutter Dia 0.1574 4.00MM
End Of Tool Shape Square
Machine Side Connection Size 0.1575 4.00MM
Helix Angle 45°
Overall Len 1.9685 50.00MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
