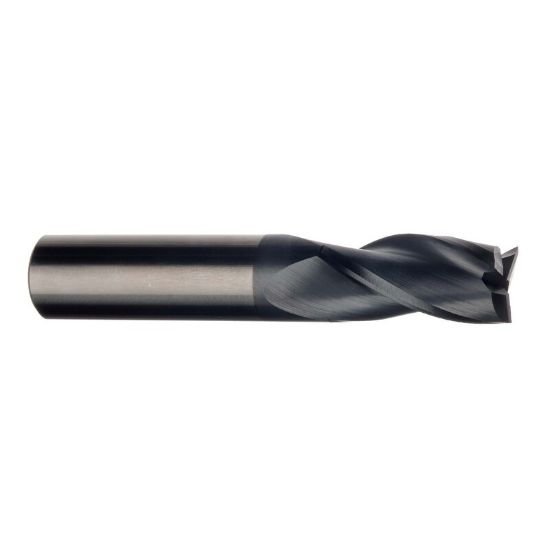

Picture of Imco 36783 Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp General PURPOSE

Imco 36783 Dia 20mm SH 0.7874 LOC 1.4961 OAL4.0945 End Mill Standard Flute Standard Helix Carbide AlTiN Single End Square Sharp General PURPOSE

Part Number: IMC36783 0.787 x 0.787 x 1.496 x 4.095
Looking for alternatives…

Need Assistance or Service? Please call 262-251-4020

Manufacturer:
SKU: 1231025
Vendor: Sussex Tool and Supply
$210.37

Description

IMCO Standard Helix End Mill Carbide AlTiN Square Sharp Standard Flute Flutes 3 Single End GENERAL PURPOSE Carbide Produces aluminum oxide layer at high temperature which reduces thermal conductivity, transferring heat into the chip. Excellent in dry machining, machining titanium alloys, inconel, stainless alloys and cast iron. Not recommended for use in aluminum and aluminum alloys.
Products specifications
Attribute name Attribute value
General Information
Shipping State Ohio
Made In USA YES
Cutter Type Solid End Mill
Coolant Thru Non Coolant
Length Type STANDARD
End Of Tool Shape Square
Cutter Style Carbide Finisher
Single/Double End Single End
Inch/Metric Metric
Center Cutting Center Cutting
Dimensions & Sizing
Overall Length 4.0945 104.00MM
Shank/Pilot Dia 0.7874 20.00MM
Flutes/Inserts 3
Tool Dia 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Geometry & Angles
Helix Angle 30
Performance & Capacity
Cut Rating Stainless Steel, Gray Iron, <30HRC Steel, Ductile Iron
Performance Rating General Performance
Materials & Finish
Tool Material Carbide
Cutting Edge Mat Carbide
Coating ALTIN
