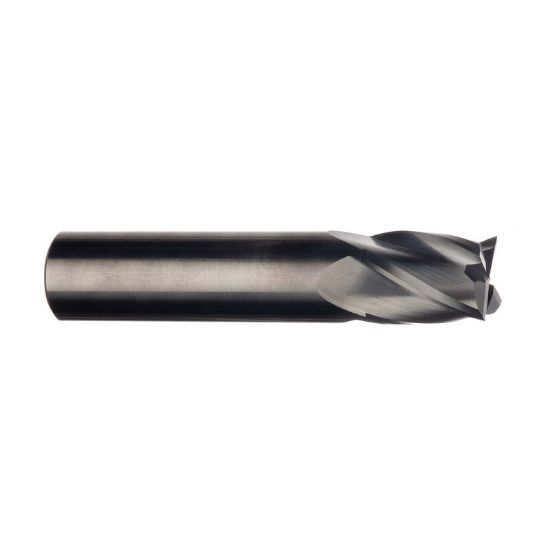

IMCO 36581 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC36581
Delivery date: 3-5 days
$147.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Face Milling, Side Milling, Slot Milling
Performance Rating General Performance
Shipping State Ohio
Dimensional Specifications
Length Of Cut 1.4961 38.00MM
Helix Angle 30°
End Of Tool Shape Square
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Cutter Dia 0.7874 20.00MM
Flutes/Inserts 4
Inch/Metric Metric
Overall Len 4.0945 104.00MM
Single/Double End Single End
Dimension Description 0.787 x 0.787 x 1.496 x 4.095
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Length Type Standard
Machine Side Connection Size 0.7874 20.00MM
Shank/Pilot Dia 0.7874 20.00MM
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Job Shop Yes
