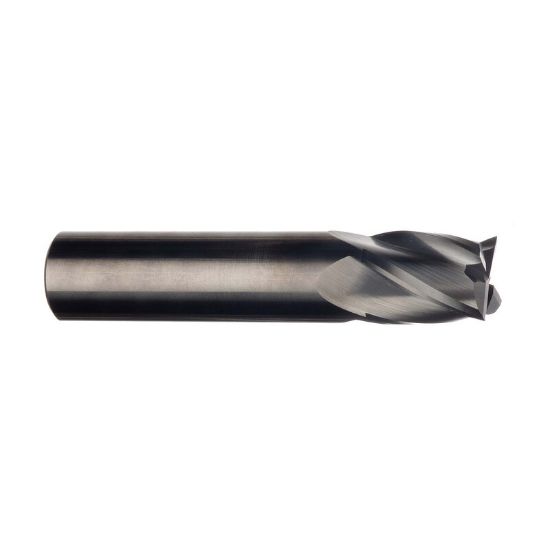

IMCO 36579 DIA 16MM SH 0.6299 LOC 1.2598 OAL 3.6220 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC36579
Delivery date: 3-5 days
$85.76

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Side Milling, Slot Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating General Performance
Dimensional Specifications
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Single/Double End Single End
Length Type Standard
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Overall Len 3.6220 92.00MM
Helix Angle 30°
Cutter Dia 0.6299 16.00MM
Flutes/Inserts 4
Length Of Cut 1.2600 32.00MM
Inch/Metric Metric
Dimension Description 0.630 x 0.630 x 1.260 x 3.622
End Of Tool Shape Square
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Center Cutting Yes
Cutting Edge Mat Carbide
Coolant Thru No
Industry-Specific Applications
Job Shop Yes
