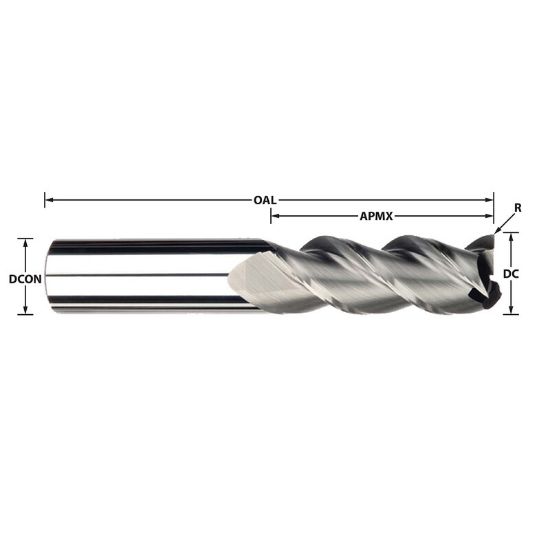

IMCO 34388 DIA 1/4 SH 0.2500 LOC 0.7500 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34388
Delivery date: 3-5 days
$32.59

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Helix Angle 45°
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0300 0.76MM
Length Of Cut 0.7500 19.05MM
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Cutter Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.250 x 0.250 x 0.750 x 2.500
Length Type Standard
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
