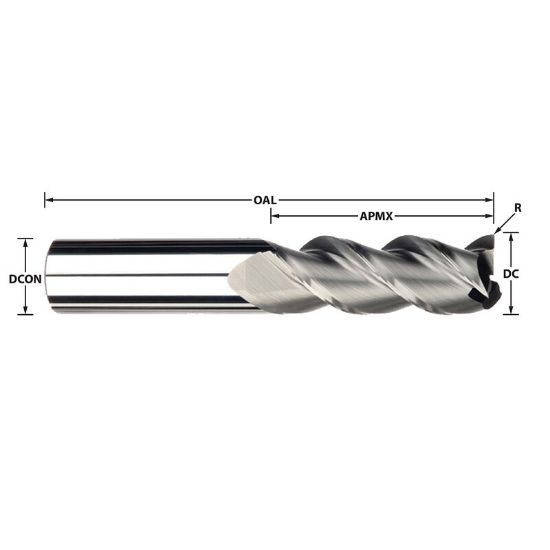

IMCO 34307 DIA 20MM SH 0.7874 LOC 2.2441 OAL 4.9213 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34307
Delivery date: 3-5 days
$202.10

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Face Milling, Side Milling
Package Size 1
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Dimension Description 0.787 x 0.787 x 2.244 x 4.921
Tool Material Carbide
Machine Side Connection Type Cylindrical
Shank/Pilot Dia 0.7874 20.00MM
Helix Angle 45°
Flutes/Inserts 3
Length Of Cut 2.2441 57.00MM
Inch/Metric Metric
Single/Double End Single End
Machine Side Connection Size 0.7874 20.00MM
Cutter Dia 0.7874 20.00MM
Length Type Standard
Cut Rating Aluminum, Graphite, Plastic
Overall Len 4.9213 125.00MM
End Of Tool Shape Square
Cutter Style Carbide Finisher
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
