IMCO 34303 DIA 8MM SH 0.3150 LOC 1.1417 OAL 2.9528 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34303
Delivery date: 3-5 days
$53.68

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Slot Milling, Side Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Machine Side Connection Size 0.3150 8.00MM
Flutes/Inserts 3
End Of Tool Shape Square

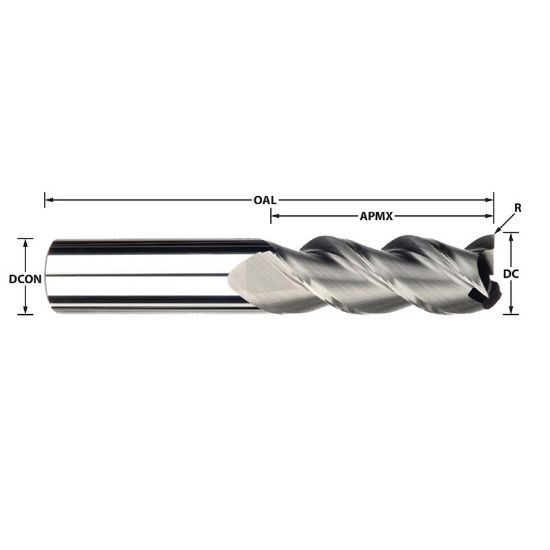

Dimension Description 0.315 x 0.315 x 1.142 x 2.953
Shank/Pilot Dia 0.3150 8.00MM
Cutter Dia 0.3150 8.00MM
Length Type Standard
Inch/Metric Metric
Helix Angle 45°
Overall Len 2.9528 75.00MM
Length Of Cut 1.1417 29.00MM
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
