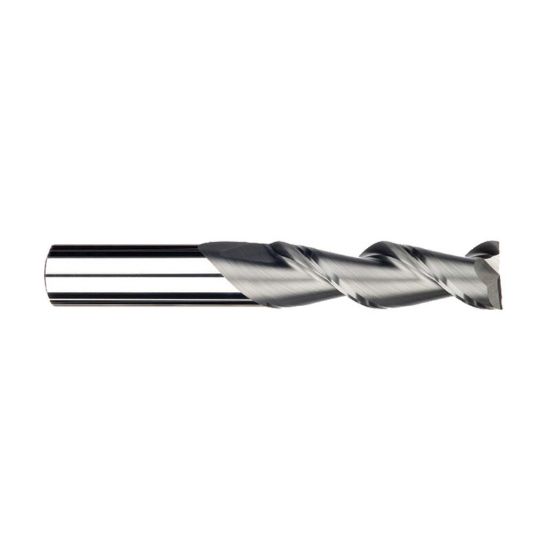

IMCO 34198 DIA 1/2 SH 0.50 LOC 2.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34198
Delivery date: 3-5 days
$90.43

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Copy Milling, Profile Milling, Slot Milling, Face Milling, Side Milling
Performance Rating High Performance
Package Size 1
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
Machine Side Connection Size 0.5000 12.70MM
End Of Tool Shape Corner Radius
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Cutter Style Carbide Bull Nose Finisher
Dimension Description 0.500 x 0.500 x 2.000 x 4.000
Cutter Dia 0.5000 12.70MM - 1/2
Helix Angle 45°
Single/Double End Single End
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Flutes/Inserts 2
Length Type Standard
Overall Len 4.0000 101.60MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
