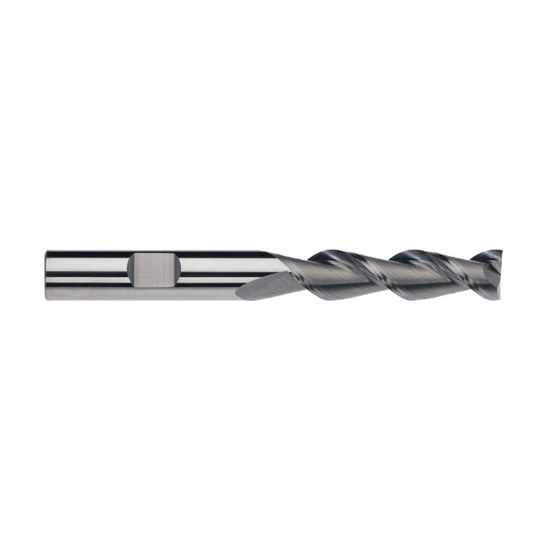

IMCO 34162 DIA 1/2 SH 0.50 LOC 1.2500 OAL 3.2500 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34162
Delivery date: 3-5 days
$70.18

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Performance Rating High Performance
Shipping State Ohio
Dimensional Specifications
Helix Angle 45°
Flutes/Inserts 2
Machine Side Connection Type Weldon
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
Corner Radius 0.0300 0.76MM
Machine Side Connection Size 0.5000 12.70MM
Overall Len 3.2500 82.55MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard
Dimension Description 0.500 x 0.500 x 1.250 x 3.250
Length Of Cut 1.2500 31.75MM
Cutter Style Carbide Bull Nose Finisher
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
