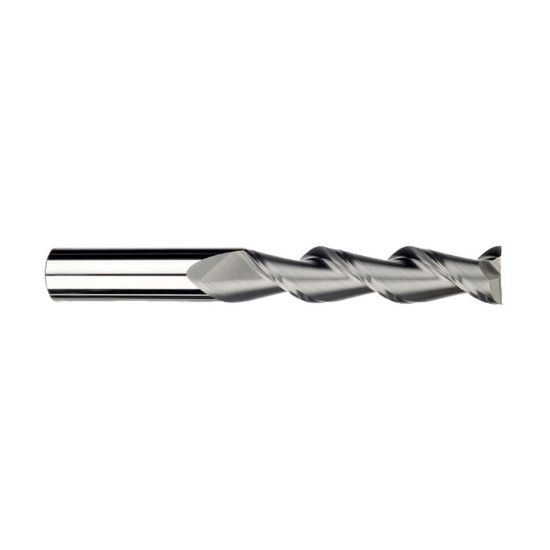

IMCO 34144 DIA 3/8 SH 0.3750 LOC 2.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34144
Delivery date: 3-5 days
$71.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Performance Rating High Performance
Application Copy Milling, Face Milling, Profile Milling, Slot Milling, Side Milling
Made In USA Yes
Shipping State Ohio
Dimensional Specifications
Helix Angle 45°
Corner Radius 0.0300 0.76MM
Flutes/Inserts 2
Cutter Dia 0.3750 9.53MM - 3/8
Cutter Style Carbide Bull Nose Finisher
Cut Rating Aluminum, Graphite, Plastic
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Tool Material Carbide
Machine Side Connection Type Cylindrical
Length Of Cut 2.0000 50.80MM
Inch/Metric Inch
End Of Tool Shape Corner Radius
Single/Double End Single End
Dimension Description 0.375 x 0.375 x 2.000 x 4.000
Overall Len 4.0000 101.60MM
Machine Side Connection Size 0.3750 9.53MM
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
