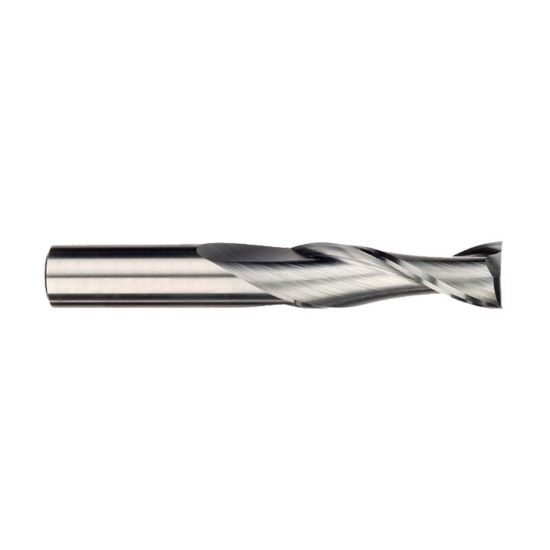

IMCO 34020 DIA 5/16 SH 0.3125 LOC 1.6250 OAL 4.00 End Mill Standard Flute Standard Helix Carbide Uncoated Single End Square Sharp General Purpose

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC34020
Delivery date: 3-5 days
$60.90

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Shipping State Ohio
Package Size 1
Performance Rating General Performance
Made In USA Yes
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Cut Rating <30HRC Steel, Ductile Iron, Gray Iron, Stainless Steel
Flutes/Inserts 2
Length Of Cut 1.6250 41.28MM
Dimension Description 0.313 x 0.313 x 1.625 x 4.000
Cutter Dia 0.3125 7.94MM - 5/16
Tool Material Carbide
Machine Side Connection Type Cylindrical
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Machine Side Connection Size 0.3125 7.94MM
Length Type Standard
Single/Double End Single End
Overall Len 4.0000 101.60MM
Helix Angle 30°
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Job Shop Yes
