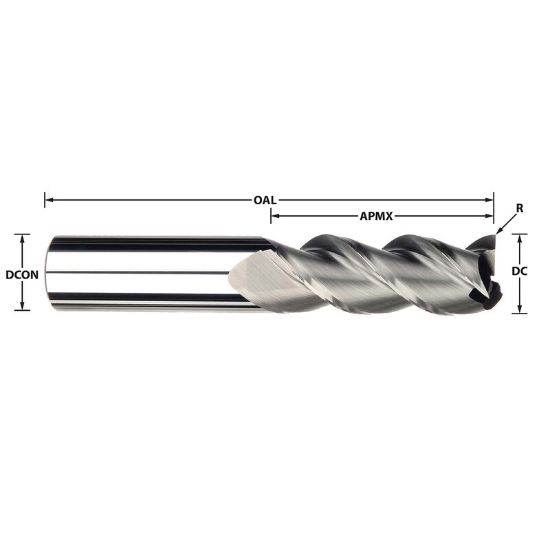

IMCO 33614 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.1250 3.18MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33614
Delivery date: 3-5 days
$155.95

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Corner Radius 0.1250 3.18MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Inch/Metric Inch
End Of Tool Shape Corner Radius
Single/Double End Single End
Shank/Pilot Dia 0.7500 19.05MM - 3/4
Dimension Description 0.750 x 0.750 x 1.000 x 4.000
Length Type Standard
Cutter Dia 0.7500 19.05MM - 3/4
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 45°
Machine Side Connection Type Cylindrical
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
