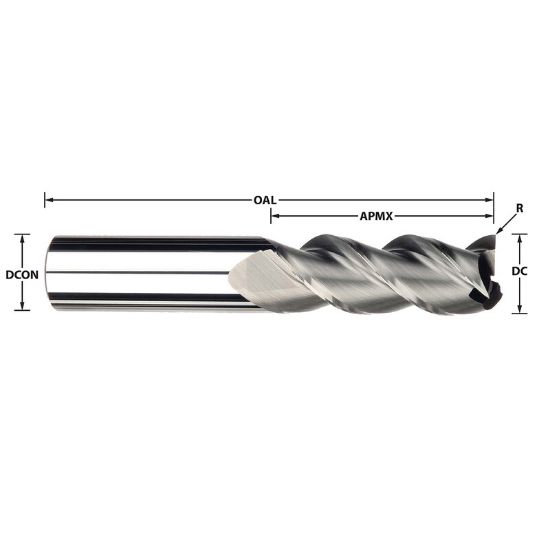

IMCO 33611 DIA 3/4 SH 0.7500 LOC 1.00 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0300 0.76MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33611
Delivery date: 3-5 days
$147.54

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Slot Milling, Side Milling, Face Milling, Profile Milling, Copy Milling
Shipping State Ohio
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 3
Cutter Style Carbide Bull Nose Finisher
Cutter Dia 0.7500 19.05MM - 3/4
Machine Side Connection Size 0.7500 19.05MM
Helix Angle 45°
Overall Len 4.0000 101.60MM
Length Of Cut 1.0000 25.40MM
Corner Radius 0.0300 0.76MM
Shank/Pilot Dia 0.7500 19.05MM - 3/4
End Of Tool Shape Corner Radius
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Inch/Metric Inch
Dimension Description 0.750 x 0.750 x 1.000 x 4.000
Length Type Standard
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
