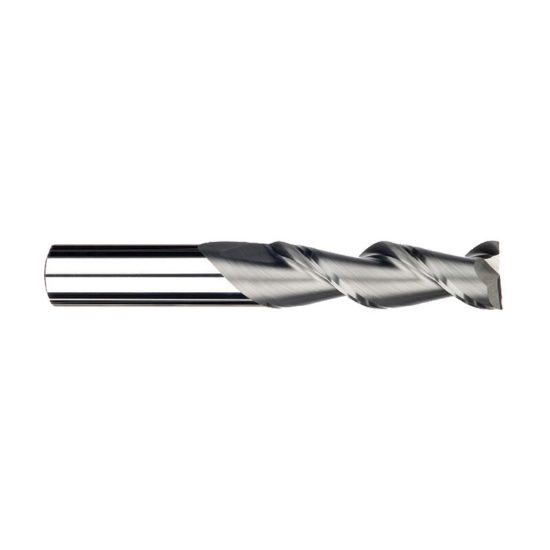

IMCO 33552 DIA 1/4 SH 0.2500 LOC 1.2500 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33552
Delivery date: 3-5 days
$46.36

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Face Milling, Profile Milling, Copy Milling, Side Milling, Slot Milling
Performance Rating High Performance
Shipping State Ohio
Package Size 1
Made In USA Yes
Dimensional Specifications
Length Type Standard
Length Of Cut 1.2500 31.75MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Inch/Metric Inch
Cutter Style Carbide Bull Nose Finisher
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Flutes/Inserts 2
Overall Len 3.0000 76.20MM
Dimension Description 0.250 x 0.250 x 1.250 x 3.000
Cutter Dia 0.2500 6.35MM - 1/4 - E
Helix Angle 45°
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
