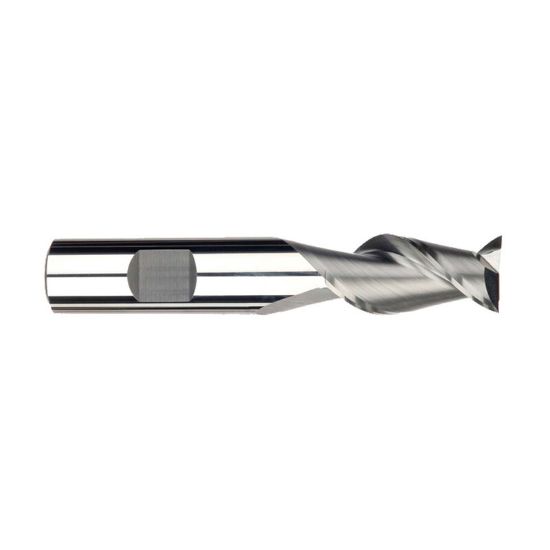

IMCO 33546 DIA 1/4 SH 0.2500 LOC 0.7500 OAL 2.50 End Mill Standard Flute High Helix Carbide Uncoated Single End Corner Radius 0.0150 0.38MM Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33546
Delivery date: 3-5 days
$37.53

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Application Side Milling, Copy Milling, Face Milling, Profile Milling, Slot Milling
Made In USA Yes
Shipping State Ohio
Performance Rating High Performance
Dimensional Specifications
Flutes/Inserts 2
Length Of Cut 0.7500 19.05MM
Dimension Description 0.250 x 0.250 x 0.750 x 2.500
Length Type Standard
Helix Angle 45°
Cutter Dia 0.2500 6.35MM - 1/4 - E
Cutter Style Carbide Bull Nose Finisher
Tool Material Carbide
Machine Side Connection Type Weldon
Inch/Metric Inch
Corner Radius 0.0150 0.38MM
Cut Rating Aluminum, Graphite, Plastic
Machine Side Connection Size 0.2500 6.35MM
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 2.5000 63.50MM
End Of Tool Shape Corner Radius
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
