IMCO 33179 DIA 20MM SH 0.7874 LOC 1.4961 OAL 4.0945 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33179
Delivery date: 3-5 days
$162.71

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Shipping State Ohio
Performance Rating High Performance
Package Size 1
Made In USA Yes
Dimensional Specifications
Machine Side Connection Size 0.7874 20.00MM
Length Of Cut 1.4961 38.00MM
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Length Type Standard
Cutter Dia 0.7874 20.00MM
Inch/Metric Metric
Flutes/Inserts 3
Machine Side Connection Type Cylindrical

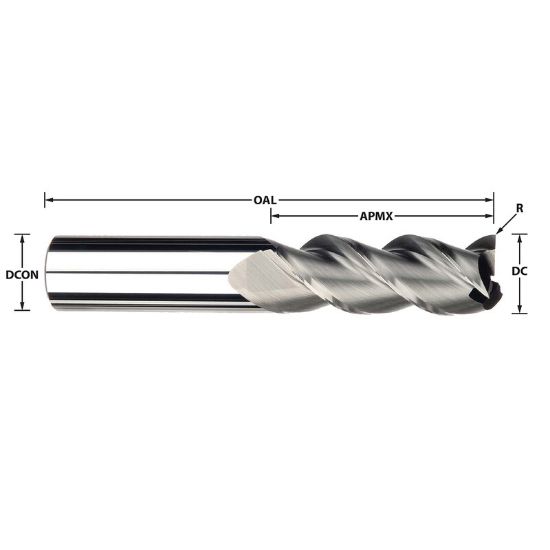

Dimension Description 0.787 x 0.787 x 1.496 x 4.095
Helix Angle 45°
Shank/Pilot Dia 0.7874 20.00MM
Overall Len 4.0945 104.00MM
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
