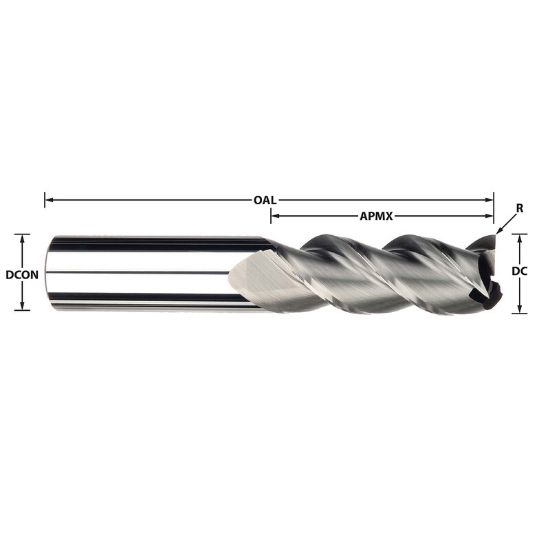

IMCO 33169 DIA 5MM SH 0.1969 LOC 0.5118 OAL 1.9685 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33169
Delivery date: 3-5 days
$21.64

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Performance Rating High Performance
Application Side Milling, Slot Milling, Face Milling
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Flutes/Inserts 3
End Of Tool Shape Square
Overall Len 1.9685 50.00MM
Helix Angle 45°
Machine Side Connection Size 0.1969 5.00MM
Shank/Pilot Dia 0.1969 5.00MM
Length Type Standard
Length Of Cut 0.5118 13.00MM
Inch/Metric Metric
Dimension Description 0.197 x 0.197 x 0.512 x 1.969
Single/Double End Single End
Cut Rating Aluminum, Graphite, Plastic
Cutter Dia 0.1968 5.00MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Cutter Style Carbide Finisher
Cutting & Machining Properties
Cutting Edge Mat Carbide
Coolant Thru No
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
