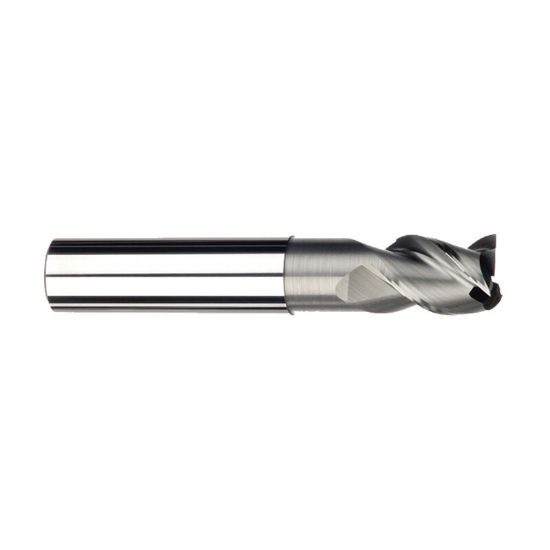

IMCO 33121 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 3.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33121
Delivery date: 3-5 days
$38.00

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Shipping State Ohio
Package Size 1
Made In USA Yes
Performance Rating High Performance
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Overall Len 3.0000 76.20MM
Length Of Cut 0.3750 9.53MM
Dimension Description 0.250 x 0.250 x 0.375 x 3.000
Cut Rating Aluminum, Graphite, Plastic
Neck Length 1.6250 41.28MM
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Flutes/Inserts 3
End Of Tool Shape Square
Length Type Standard / With Neck
Cutter Dia 0.2500 6.35MM - 1/4 - E
Helix Angle 45°
Single/Double End Single End
Cutting & Machining Properties
Coolant Thru No
Cutting Edge Mat Carbide
Center Cutting Yes
Industry-Specific Applications
Aerospace Yes
Job Shop Yes
Medical Yes
