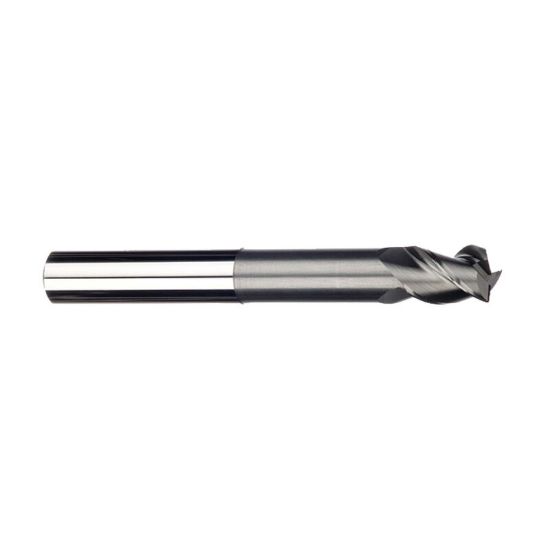

IMCO 33048 DIA 1/2 SH 0.50 LOC 0.6250 OAL 6.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33048
Delivery date: 3-5 days
$106.07

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Side Milling, Face Milling, Slot Milling
Shipping State Ohio
Package Size 1
Performance Rating High Performance
Made In USA Yes
Dimensional Specifications
Overall Len 6.0000 152.40MM
Length Of Cut 0.6250 15.88MM
Flutes/Inserts 3
Dimension Description 0.500 x 0.500 x 0.625 x 6.000
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
End Of Tool Shape Square
Cutter Style Carbide Finisher
Inch/Metric Inch
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Length Type Standard / With Neck
Machine Side Connection Size 0.5000 12.70MM
Single/Double End Single End
Cutter Dia 0.5000 12.70MM - 1/2
Neck Length 3.3750 85.73MM
Helix Angle 45°
Machine Side Connection Type Cylindrical
Cutting & Machining Properties
Coolant Thru No
Center Cutting Yes
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Aerospace Yes
Job Shop Yes
