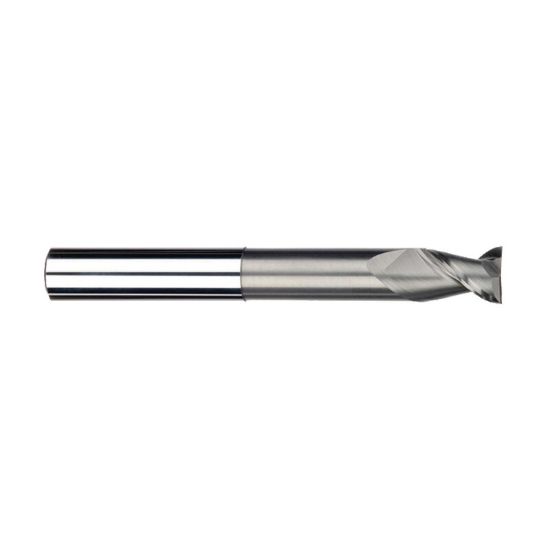

IMCO 33023 DIA 1/4 SH 0.2500 LOC 0.3750 OAL 4.00 End Mill Standard Flute High Helix Carbide Uncoated Single End Square Sharp Streaker Mill

Need Assistance or Service? Please call 262-251-4020

Manufacturer: IMCO
SKU: IMC33023
Delivery date: 3-5 days
$62.03

Cutting Edge Definition

Cemented carbides are a class of hard materials used extensively for cutting tools, as well as in other industrial applications. It consists of fine particles of carbide cemented into a composite by a binder metal. Cemented carbides commonly use tungsten carbide (WC), titanium carbide (TiC), or tantalum carbide (TaC) as the aggregate. Mentions of "carbide" or "tungsten carbide" in industrial contexts usually refer to these cemented composites. The cobalt content could vary from 5% to 23% base on application. 8% to 12% are the most common for cutting tools. Ruthenium is used to replace cobalt as a perfered binder for the best cutting performance.

Products specifications
Attribute name Attribute value
General Product Information
Application Slot Milling, Side Milling, Face Milling
Performance Rating High Performance
Made In USA Yes
Shipping State Ohio
Package Size 1
Dimensional Specifications
Shank/Pilot Dia 0.2500 6.35MM - 1/4 - E
Cut Rating Aluminum, Graphite, Plastic
Tool Material Carbide
Machine Side Connection Type Cylindrical
Machine Side Connection Size 0.2500 6.35MM
Length Of Cut 0.3750 9.53MM
Cutter Style Carbide Finisher
Inch/Metric Inch
Length Type Standard / With Neck
Helix Angle 45°
Flutes/Inserts 2
Neck Length 2.2500 57.15MM
End Of Tool Shape Square
Overall Len 4.0000 101.60MM
Cutter Dia 0.2500 6.35MM - 1/4 - E
Dimension Description 0.250 x 0.250 x 0.375 x 4.000
Single/Double End Single End
Cutting & Machining Properties
Center Cutting Yes
Coolant Thru No
Cutting Edge Mat Carbide
Industry-Specific Applications
Medical Yes
Job Shop Yes
Aerospace Yes
